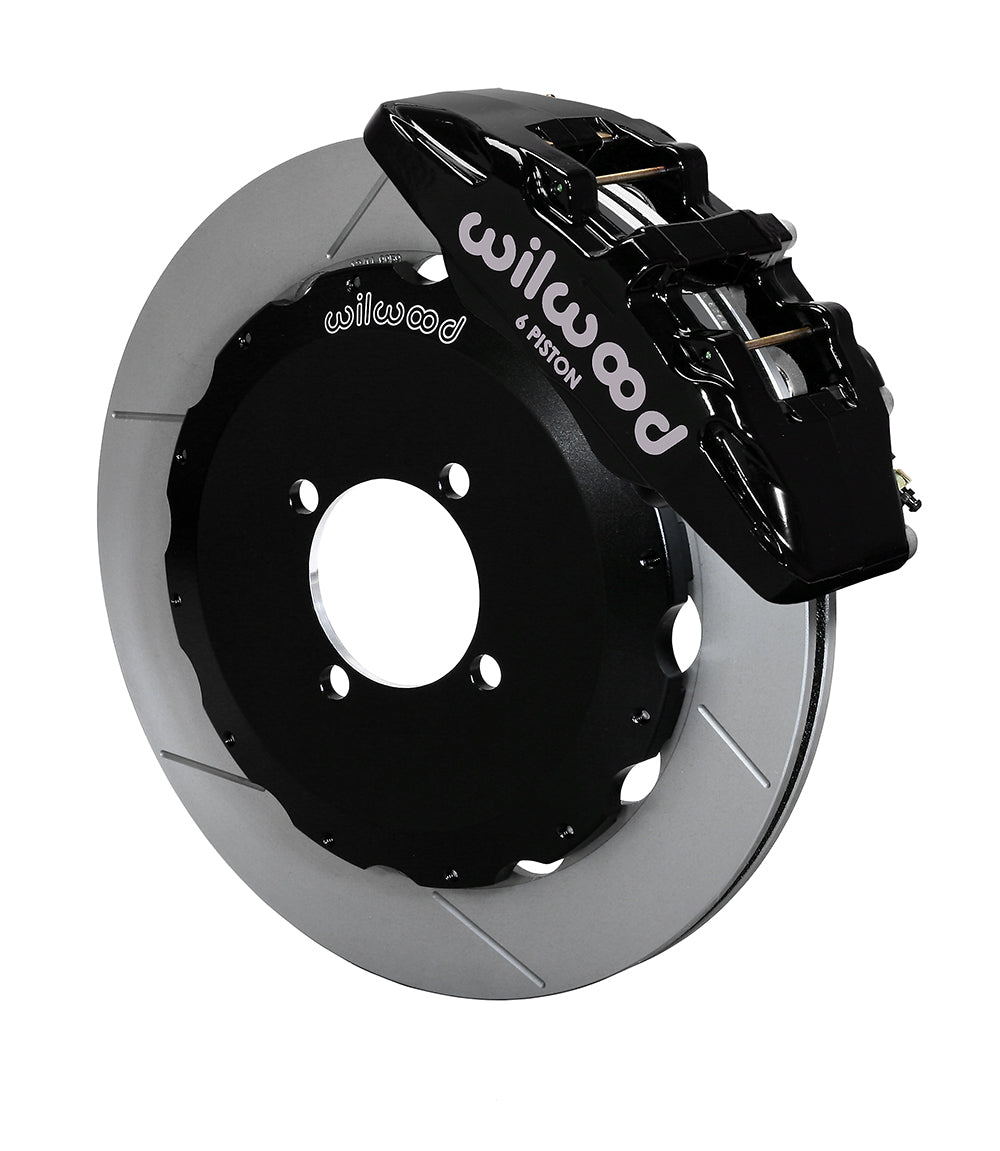

Forged Dynapro 6 Piston Front Big Brake Kit for the Mazda MX-5 (ND1 & ND2)

The enhanced brake capacity and pad performance of the Wilwood DynaPro 6 forged billet six-piston caliper is combined with 12.88” diameter rotors for this group of front wheel drive sport compact kits such as the Mazda ND Series MX-5.



These kits are the perfect compliment to 17" wheel, tyre, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

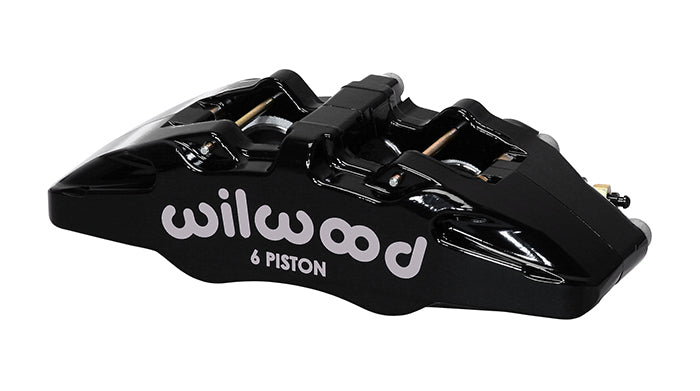

• Left Hand - Part No: 120-13439-BK
• Right Hand - Part No: 120-13438-BK
• Type: Dynapro 6

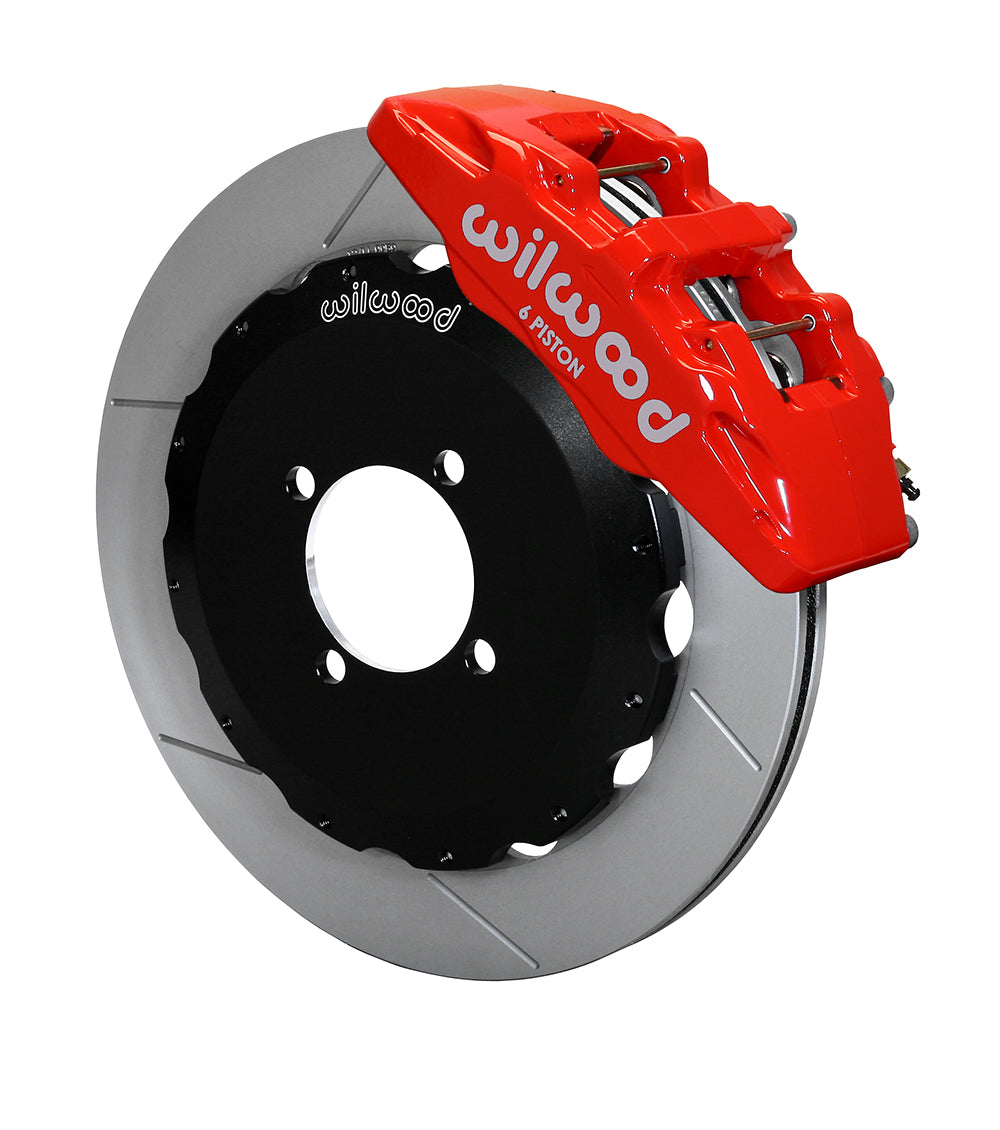

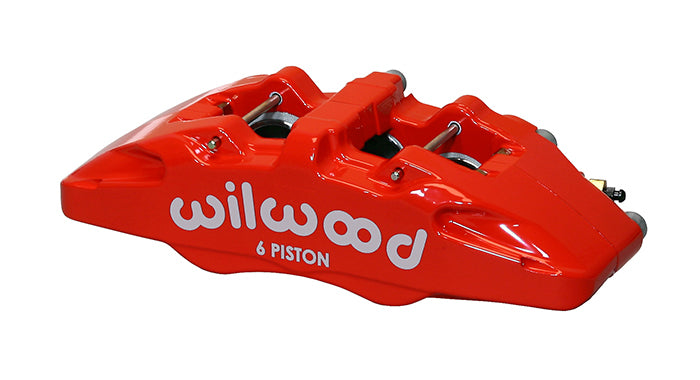

• Finish Color: Red Powder Coat or Black Powder Coat

• Piston Count: 6
• Piston 1 Bore (in): 1.38
• Piston 2 Bore (in): 1.00
• Piston 3 Bore (in): 1.00
• Piston Area (In²): 3.08
• Piston Type: Stainless
• Mount Type: Lug
• Brake Pad Plate: 6712
• Brake Pad Area (In²): 7.3
• Brake Pad Volume (In³): 2.4
• Pad Compound: BP-10

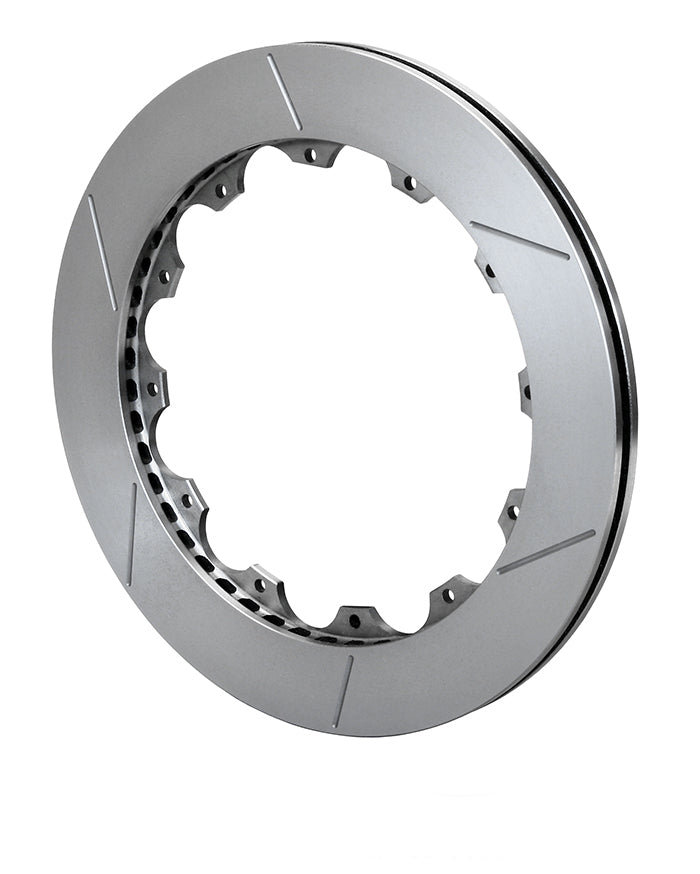

• Left Hand - Part No: 160-9960
• Right Hand - Part No: 160-9959
• Type: GT 48 Curved Vane
• Style: GT Slotted
• Surface Finish: Plain
• Material: Iron
• Outside Diameter (in): 12.88
• Width (in): 0.81
• Vane Count: 48 CV
• Design Type: GT
• Bedded: No
• Dynamically Balanced: Yes

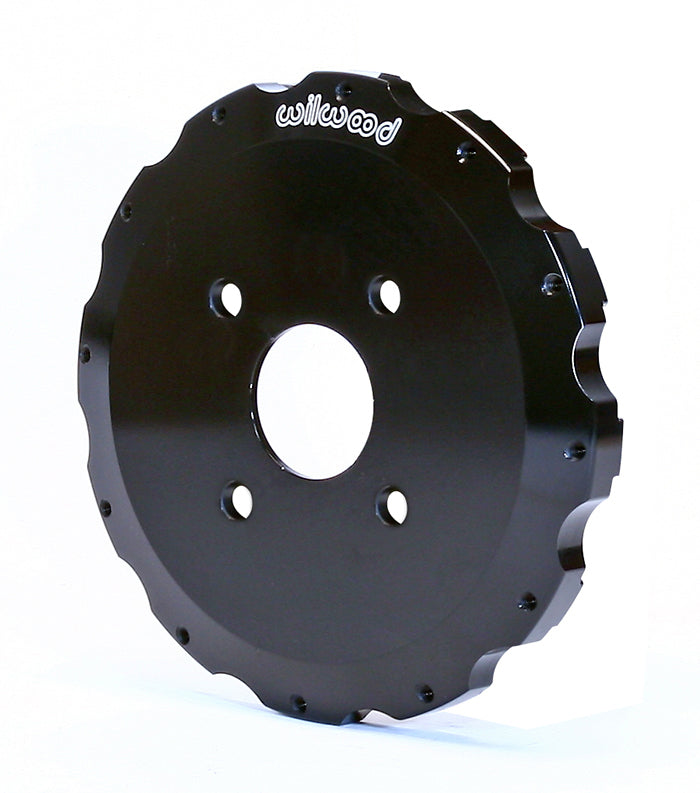

• Hat - Part No: 170-8357
• Type: Big Brake Hat - Short Offset
• Material: Aluminum
• Finish Color: Black E-Coat
• Hat Offset Dimension (in): 0.550
• Bolt Circle 1: 4 x 3.93
• Bolt Circle 2:
• Bolt Circle 3:
• Stud Diameter - BC 1: 0.520
• Stud Diameter - BC 2: 0.000
• Stud Diameter - BC 3: 0.000
