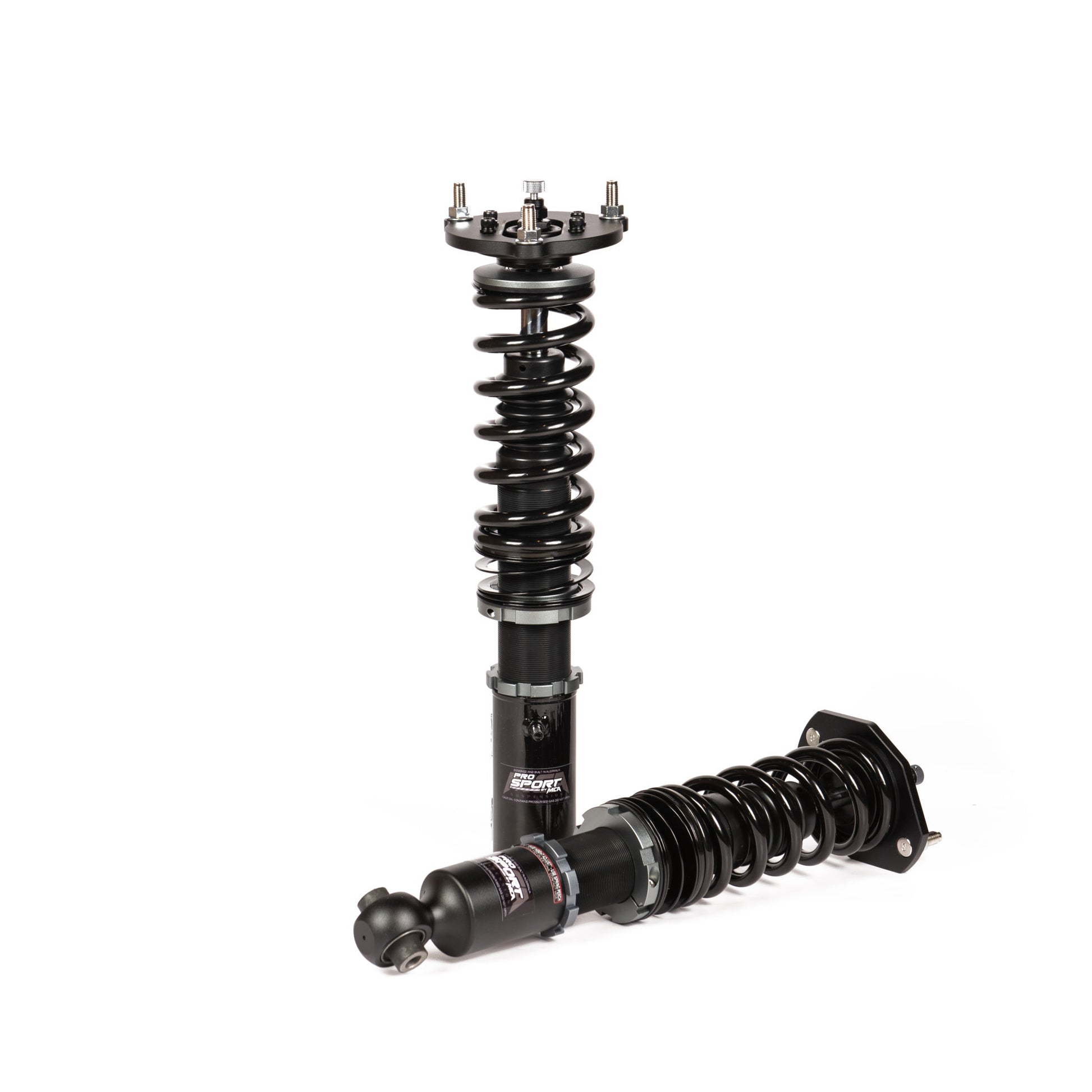

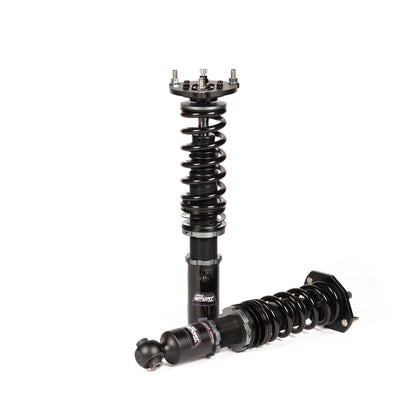

MCA Pro Sport Coilovers for the Mazda MX-5 (ND1 & ND2)

The MCA Pro-Sports are designed to provide a high level of performance but still with an acceptable level of comfort while offering a large range of adjustment. The minimal compromise is thanks to MCAs latest valving, Fusion Valving, along with a more thorough and dedicated development program. Their setup has been derived from Circuit Racing testing for the Red Series but modified to suit a wider range of applications including street use.

Product Highlights

• 3 Year Warranty
• Designed & Assembled in Australia
• Rugged Spec Internals
• Fusion Valving
• Dyno Tuning

Specifications

Designed, Developed, Assembled & Fully Supported in Australia.

• Front Spring Rate 10kgs, Rear Spring Rate 4kgs
• 3 Year Platinum Warranty
• Fusion Valving Technology
• Dyno Tuning & Testing high level of quality control
• 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together)

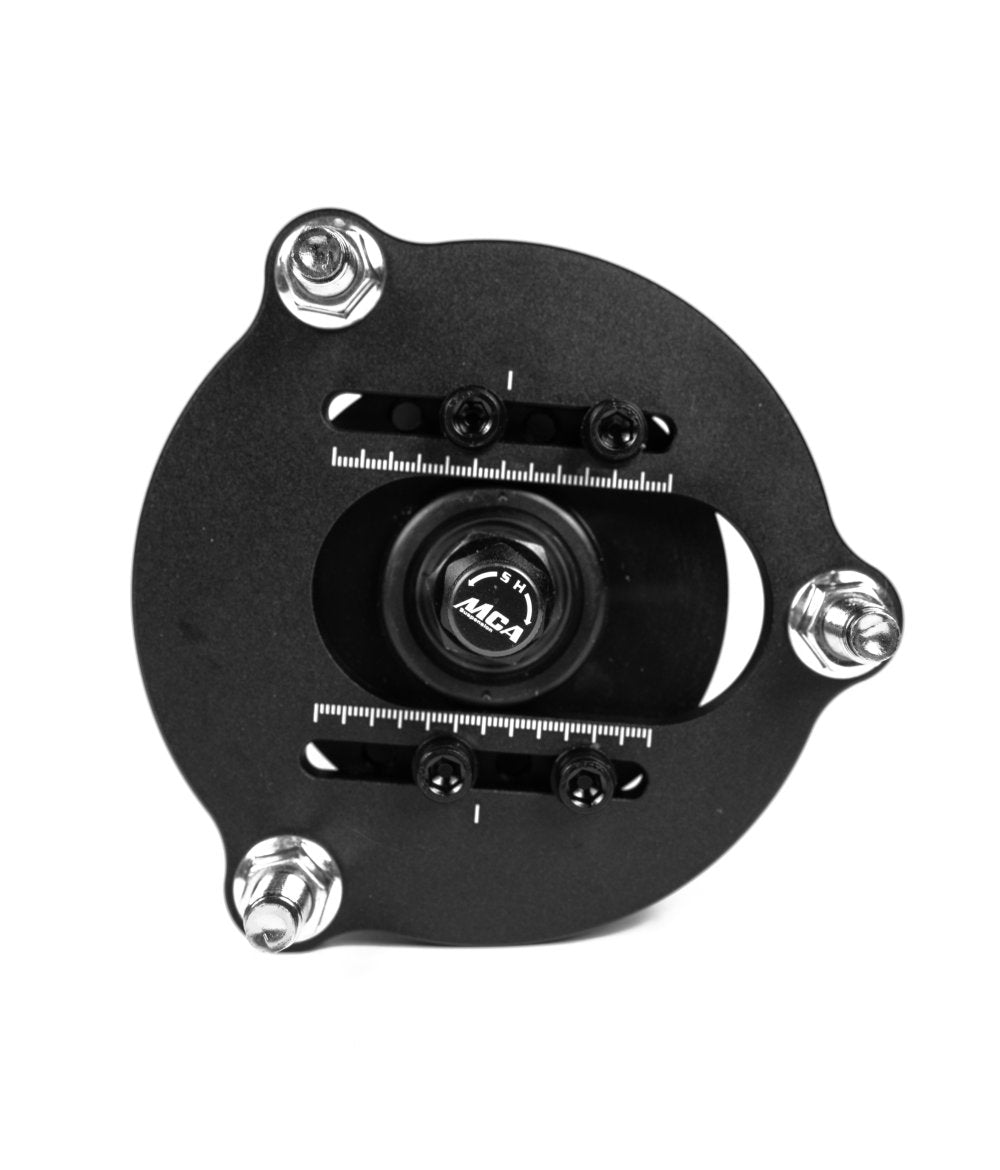

• Camber Adjustment via top mount (where possible, see vehicle specific details tab)

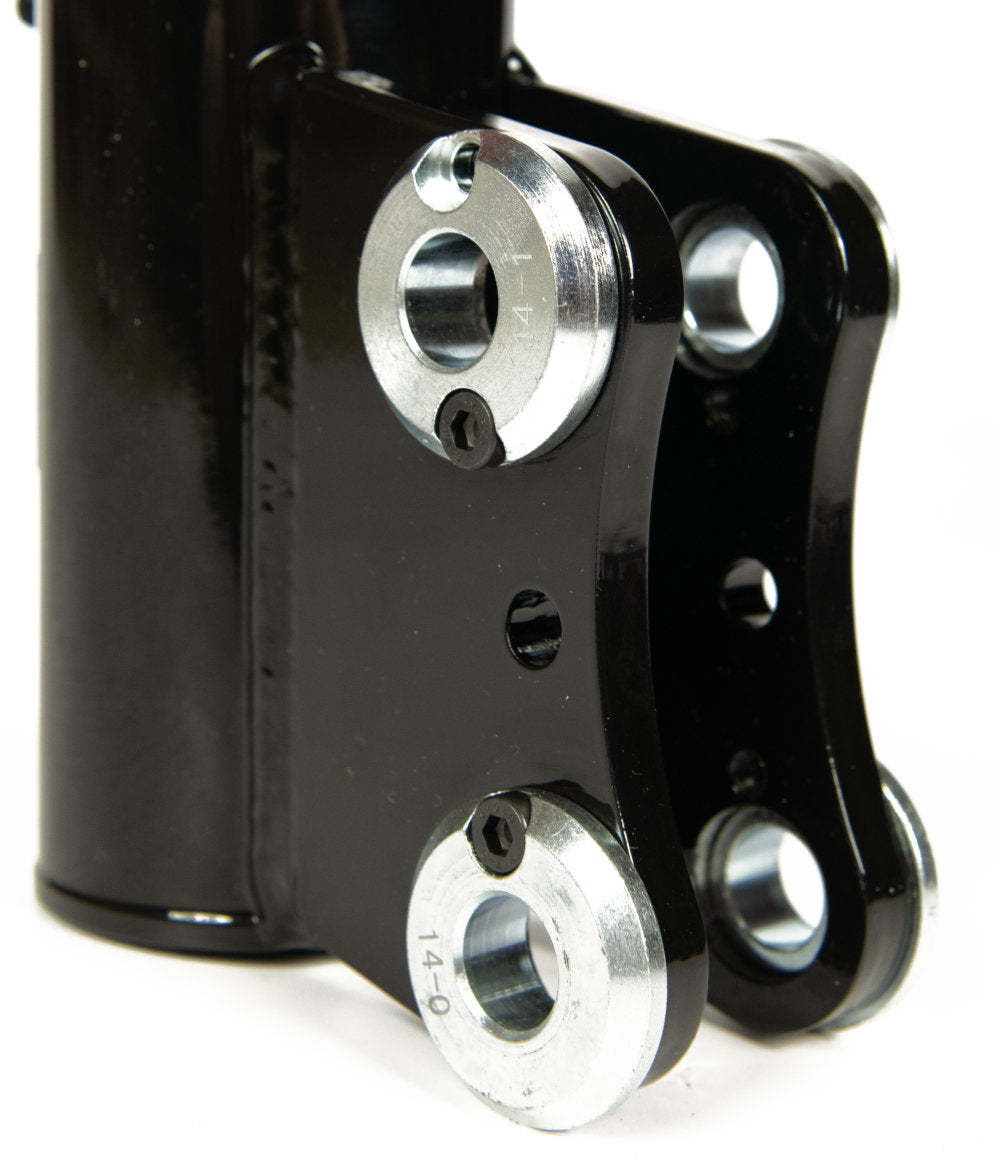

• Camber Washer Bottom Mounts (where possible, see vehicle specific details tab)
• Damper Adjuster Extenders (where possible, see vehicle specific details tab)

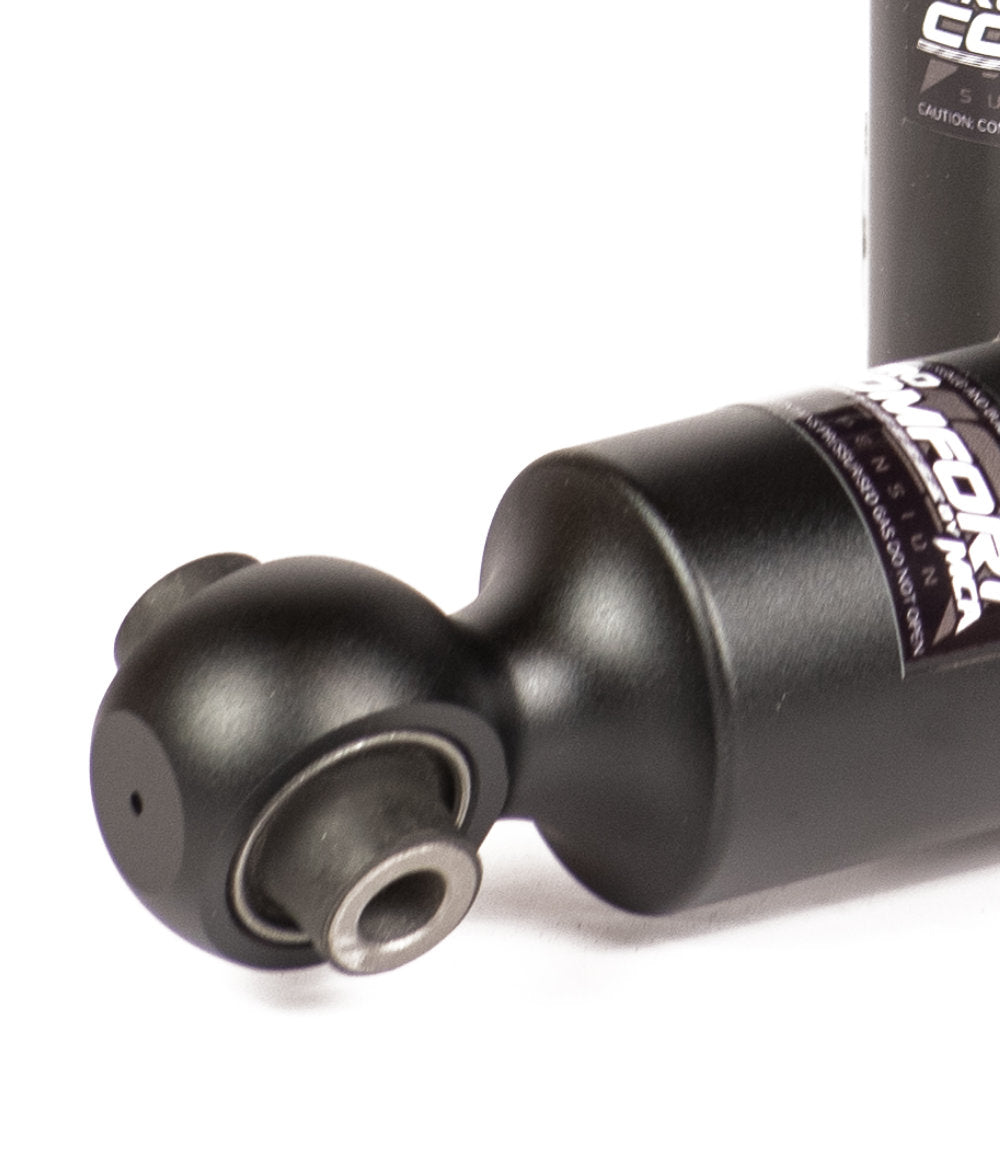

• Wheel travel range adjustment via bottom mount (pre-set by MCA)
• Height adjustment via spring seat position (base height adjustment is flawed)
• Suggested Height Adjustment Range: factory height down to tyre up inside fender by 15mm (estimate, does vary vehicle to vehicle)
• Reinforced double gusseted lower mounts (where applicable, see vehicle specific details tab)
• Helper Springs to keep the main spring captive at all times
• Latest Rugged Spec internal sealing designs and components
• Superior Monotube design

Suitable Applications

• Street driving with a firm but adequate ride quality
• Enjoyable spirited driving
• High level spirited driving
• Light/Medium Motorsport usage
• Factory height down to tyre up inside fender 15mm (estimate)

Vehicle Specific Product Information

Front

• Coilover Design


Rear

• Coilover Design

• 40cm Damper Adjuster Extenders

What's Included

• Complete Suspension System
• Height Adjustment Tools
• Setup Sheet
• Information Sheets
• MCA Sticker's
