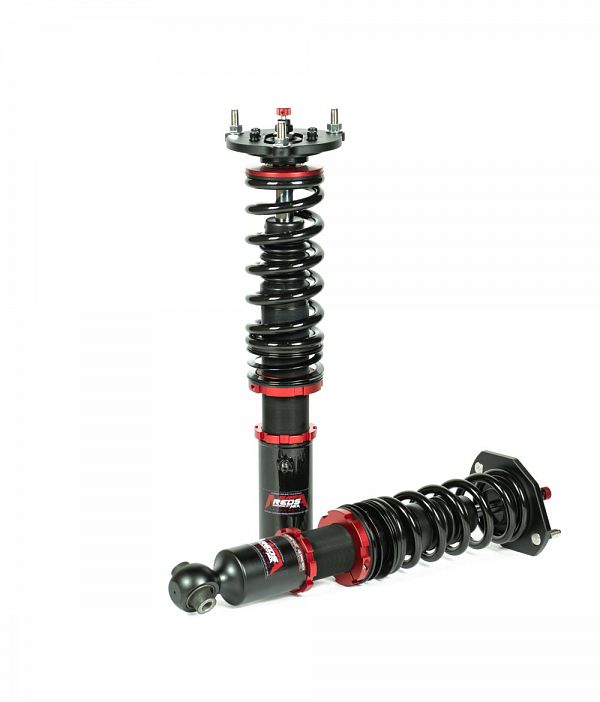

MCA Reds Coilovers for the Mazda MX-5 (ND1 & ND2)

MCA Reds are MCA's longest running product second only to the Gold Series. Whilst traditionally they are recognised for their performance and flexibility in tarmac based motorsports, their valving and springs can also be tailored to suit comfort based street use, or anything in between. The MCA Reds are currently the suspension of choice for a number of control racing categories both in Australia and overseas as well as featuring on our own lap record holding Time Attack Toyota 86.

Product Highlights

• 3 Year Warranty
• Designed & Assembled in Australia
• Rugged Spec Internals
• Custom Valving
• Custom Springs
• Dyno Tuning

Specifications

Designed, Developed, Assembled & Fully Supported in Australia.

• 3 Year Platinum Warranty
• Fusion Valving Technology
• Custom Valving designed by MCA for customers specific requirements
• Custom Springs chosen for customers specific requirements
• Dyno Tuning & Testing high level of quality control
• 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together)

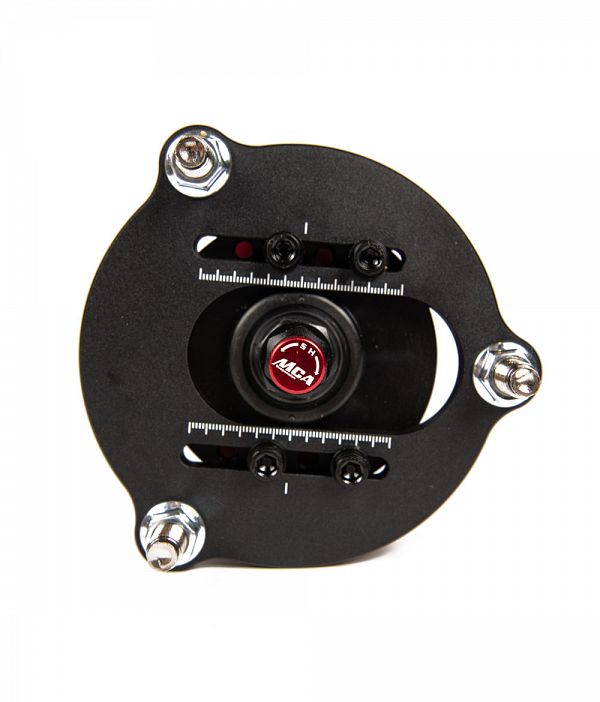

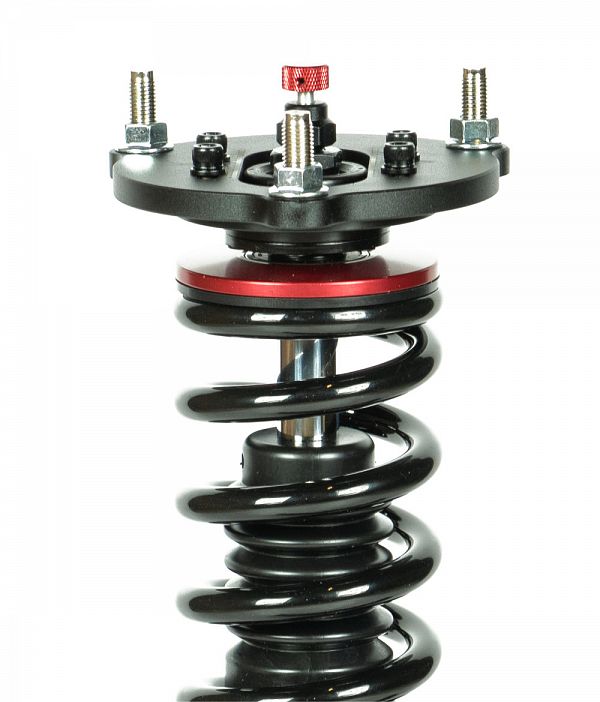

• Camber Adjustment via top mount (where possible, see vehicle specific details tab)

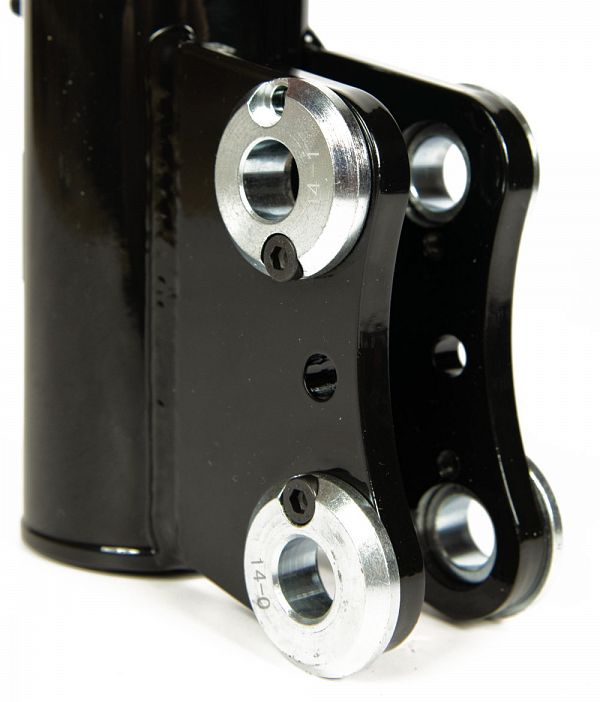

• Camber Washer Bottom Mounts (where possible, see vehicle specific details tab)
• Damper Adjuster Extenders (where possible, see vehicle specific details tab)
• Wheel travel range adjustment via bottom mount (pre-set by MCA)
• Height adjustment via spring seat position (base height adjustment is flawed)
• Suggested Height Adjustment Range: depends on the specifics of the order

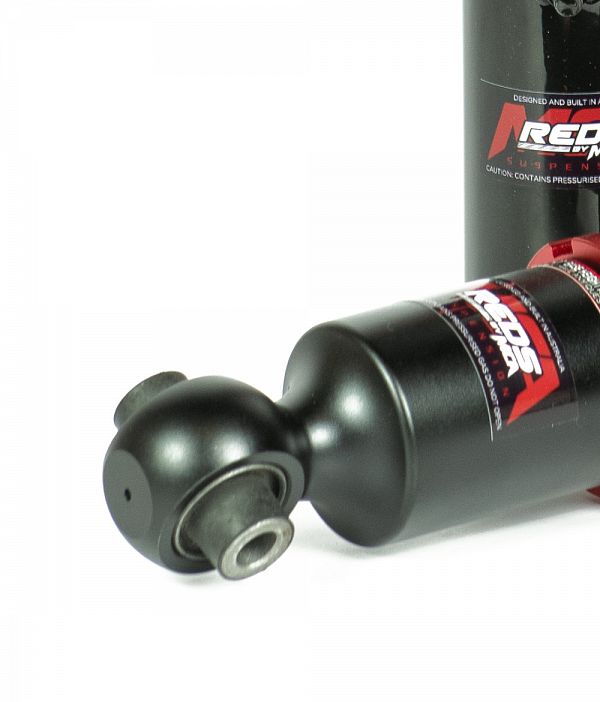

• Reinforced double gusseted lower mounts (where applicable, see vehicle specific details tab)

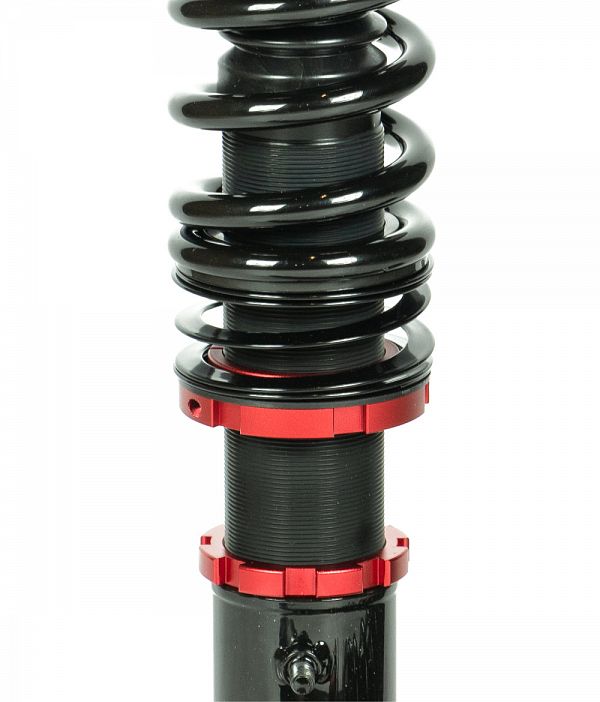

• Helper Springs to keep the main spring captive at all times
• Latest Rugged Spec internal sealing designs and components
• Superior Monotube design

Suitable Applications

• Anything tarmac based, customer to specify application
• Comfort focused street use, through to competitive Motorsport use

Vehicle Specific Product Information

Front

• Coilover Design


Rear

• Coilover Design

• 40cm Damper Adjuster Extenders

What's Included

• Complete Suspension System
• Height Adjustment Tools
• Setup Sheet
• Information Sheets
• MCA Sticker's

Comparisons

MCA Pro Comfort / Pro Sport <-> Reds

The main difference between MCA Reds and the two other MCA offerings is that the MCA Reds are a tailored package. This means that rather than having a predetermined valving and spring rate, the valving and springs are chosen specifically for each customers unique requirements.

MCA/Voston <-> Other Brands

There are a number of differences between MCA/Voston products and other brands around these price points. One of the main ones being our extensive Platinum Warranty program which offers and extreme amount of extra support and warranty coverage. The way our products are designed, where instead of using “base height adjustment” we use critical length technology which is the same as what other established, high end brands use such as Ohlins and Penske. The design and product setup is also 100% determined by MCA Suspension experience, knowledge, testing and development in Australia and is not copied off of other existing products like many other brands at this price point. In the case specifically for MCAs, these products are also 100% assembled to order in Australia, internals, not just externals. Plus the Reds are also tailor made to the customers requirements. Both Vostons and MCA products are 100% serviceable, repairable and upgradable meaning that the product can last the life of the vehicle or longer, and be upgraded/modified to suit different requirements if needed.
