Flat Underbody Panels for the Mazda MX-5 (ND1 & ND2)
Flat Underbody Panels for the Mazda MX-5 (ND1 & ND2)
Utilizing state-of-the-art analysis software during the R&D process, we were able to extract more performance for the given build volume; increasing downforce generated and drag reduced from the addition of these underbody panels.
During the design process; we utilized in-house scan data. This resulted in a product that features a near OEM fit and finish.
These underbody panels were designed for owners looking get the most out of their front splitter and rear diffuser.
What's Included
-

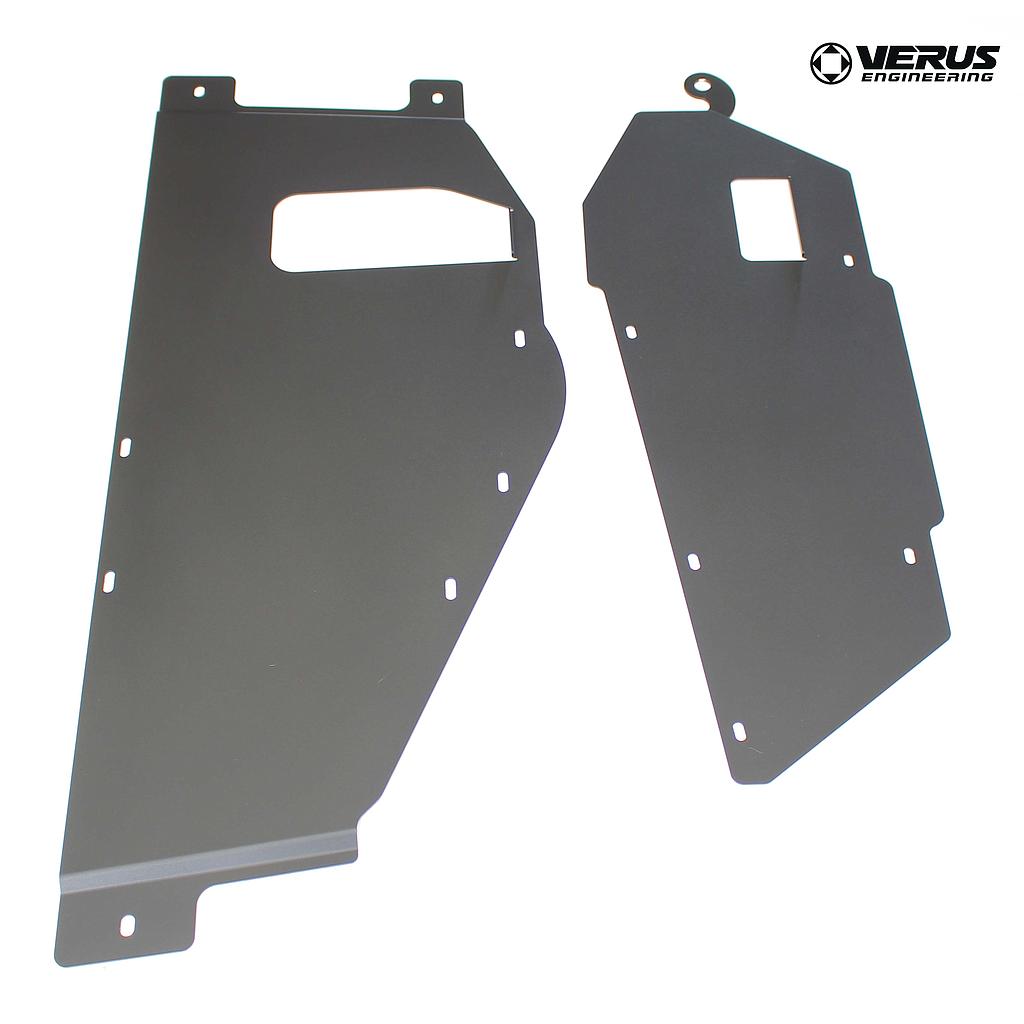

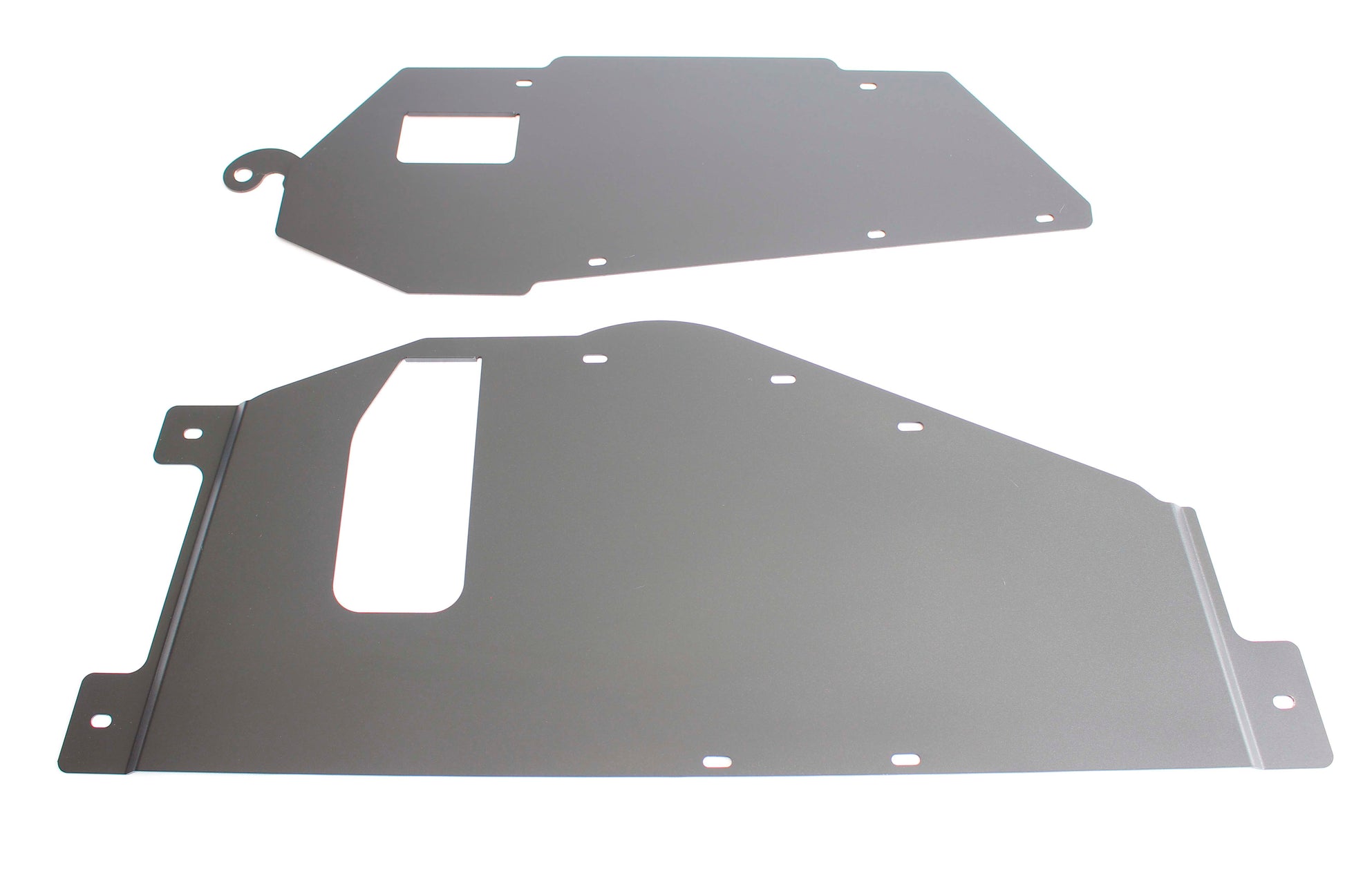

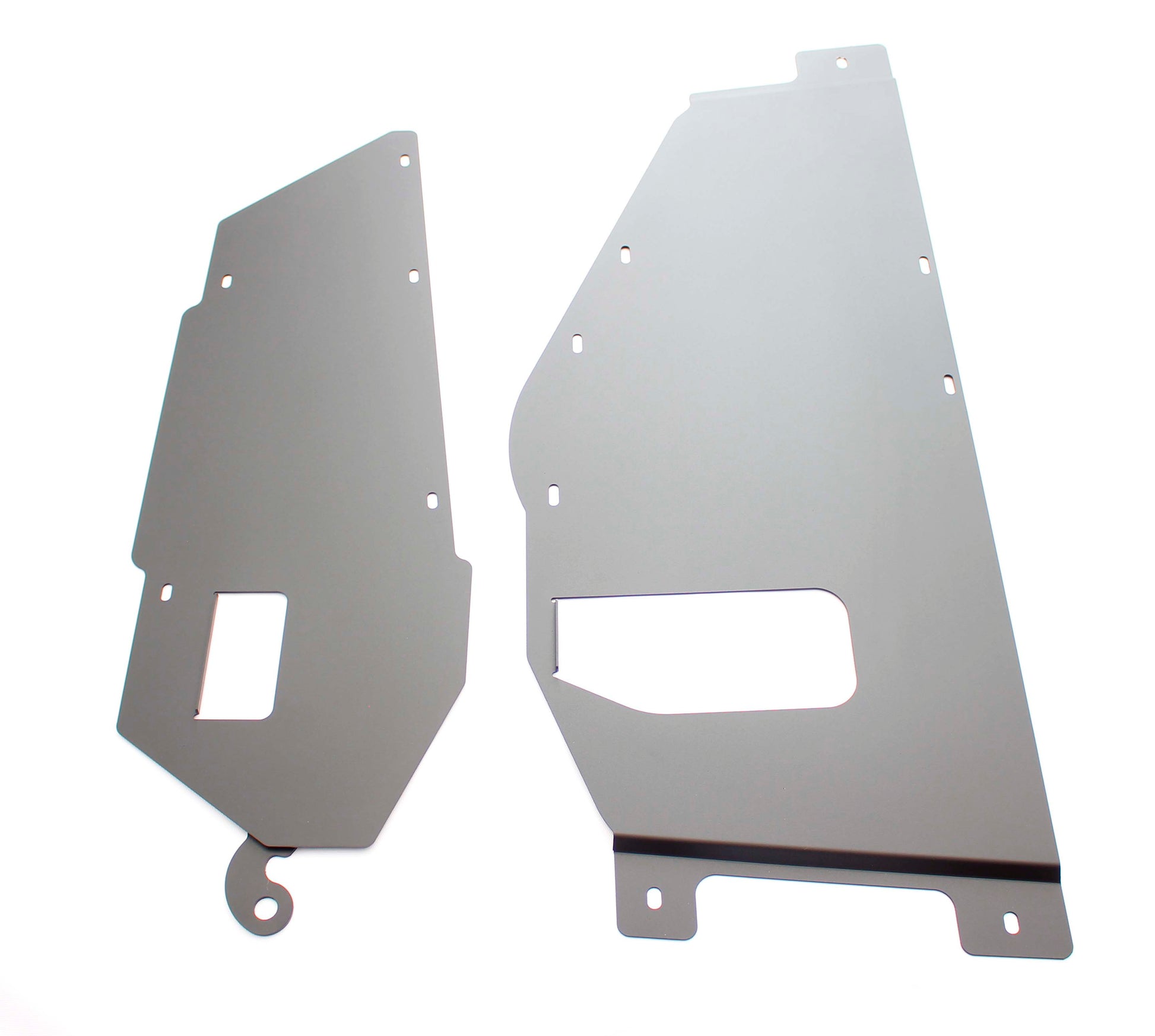

Flat Underbody Panel, Front Piece
-
Flat Underbody Panel, Rear Piece
-
Hardware Kit, Includes All Hardware Necessary for Install
Features
Reduce Drag
Increase Fuel Economy
Reduce Lap Times
Flat Underbody
Simple, Non-Invasive Bolt-on Design
Specifications
CFD Tested Design
CNC Cut
CNC Press Brake Bent
Powdercoated Black for Durability
5052 Aluminum Composition
Stainless Steel Hardware Throughout
Made in the U.S.A.
Science
The ND Miata Flat Underbody Panel is simple in operation; it reduces the vehicle's coefficient of drag (cD) by 0.010, or 10 points by reducing turbulence in an otherwise open part of the underbody. With rake, the car can also benefit from an increase in downforce as this flat area begins to act as a diffuser, as does the rest of the car's underbody.

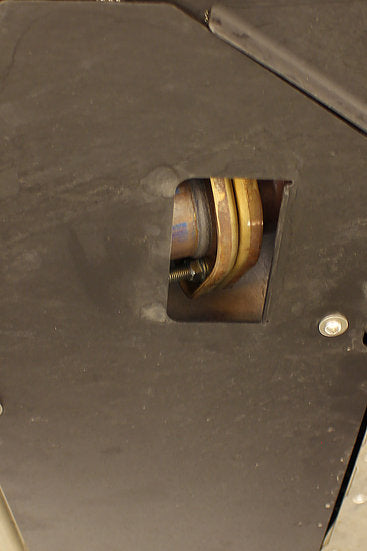

Each panel features a small wicker and cut-out for exhaust and transmission heat extraction to aid in keeping temperatures reasonable on the underbody.
