Full Brake Cooling Kit for the Mazda MX-5 (ND1 & ND2)
Full Brake Cooling Kit for the Mazda MX-5 (ND1 & ND2)

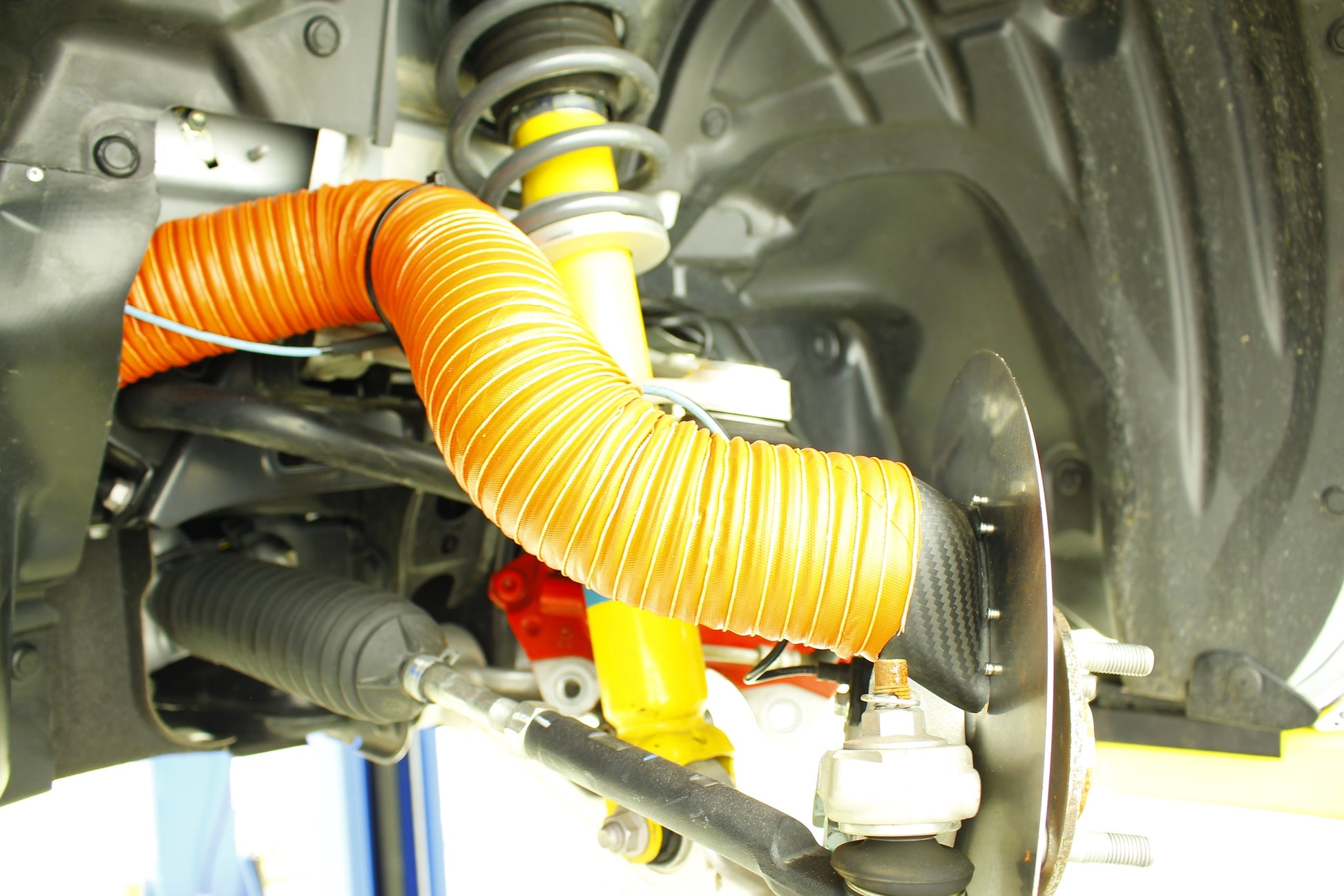

The Verus Engineering Full Brake Cooling Kit is configured in an OEM style format, with emphasis on the shortest route possible. Using the OEM fog lights as the inlet to the kit and a well-formed duct on the backing plate directing airflow into the center of the rotor. The inlet of the kit is a beautiful carbon duct that features a constantly decreasing cross-sectional area that promotes and improves flow through the brake cooling kit. The kit comes with everything necessary for an install, including pre-cut hose.
During the design process; we utilized in-house scan data from the ND. This resulted in a product that features a near OEM fit and finish.
The brake cooling kit was designed for owners looking to reduce brake fade and improve the thermal characteristics of the brakes on the Mazda ND MX-5 Miata.

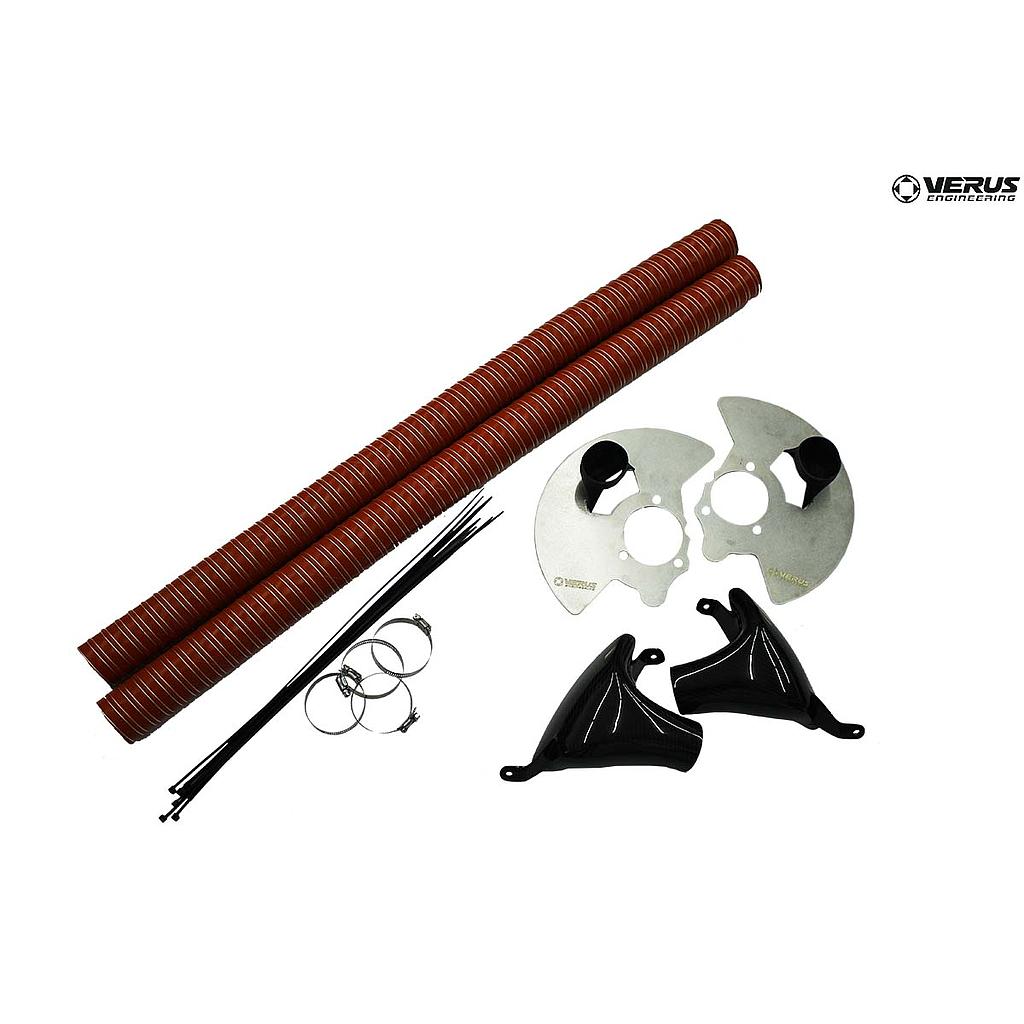

What's Included
-

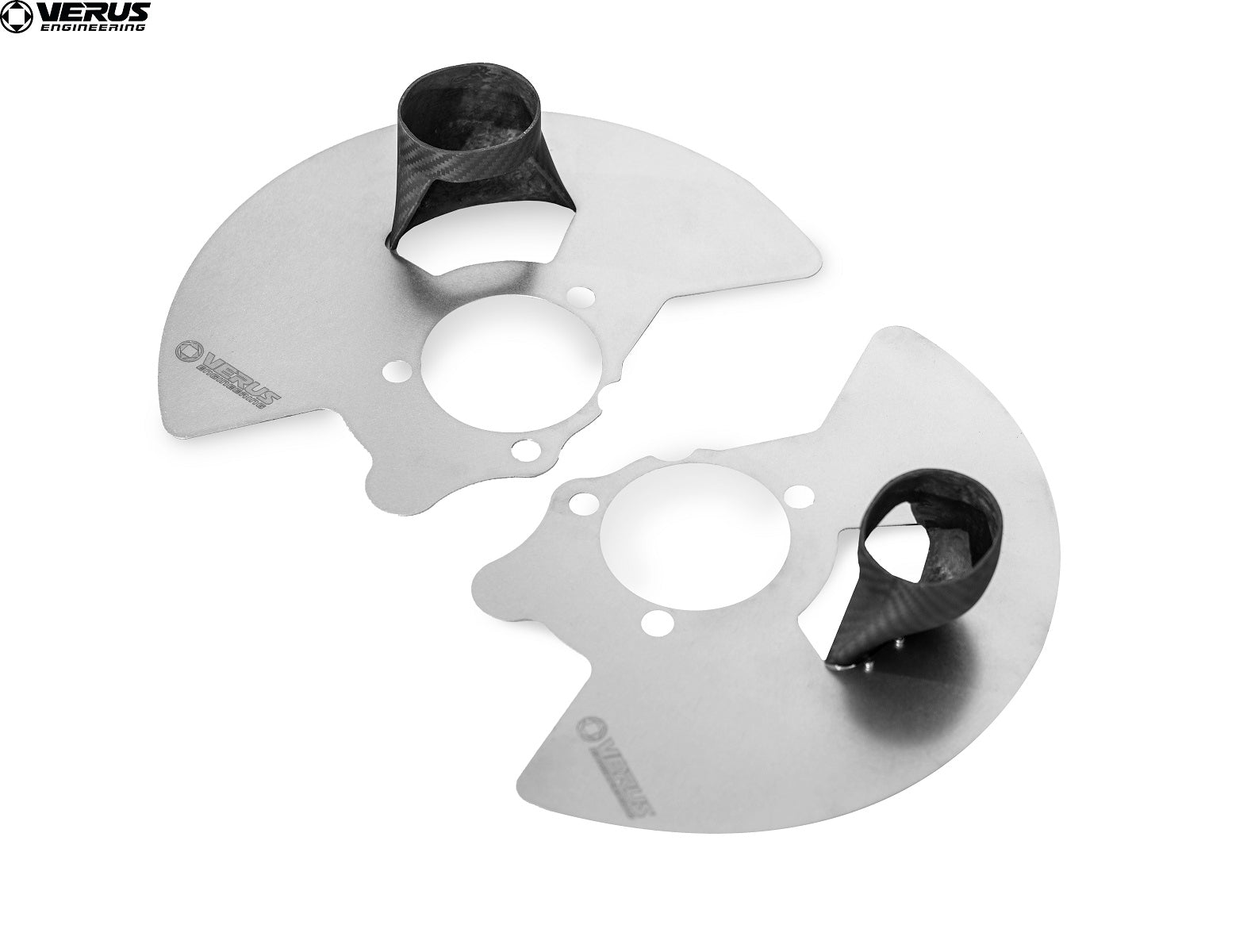

Backing Plate Including Carbon Duct, Right-Hand
-
Backing Plate Including Carbon Duct, Left-Hand
-

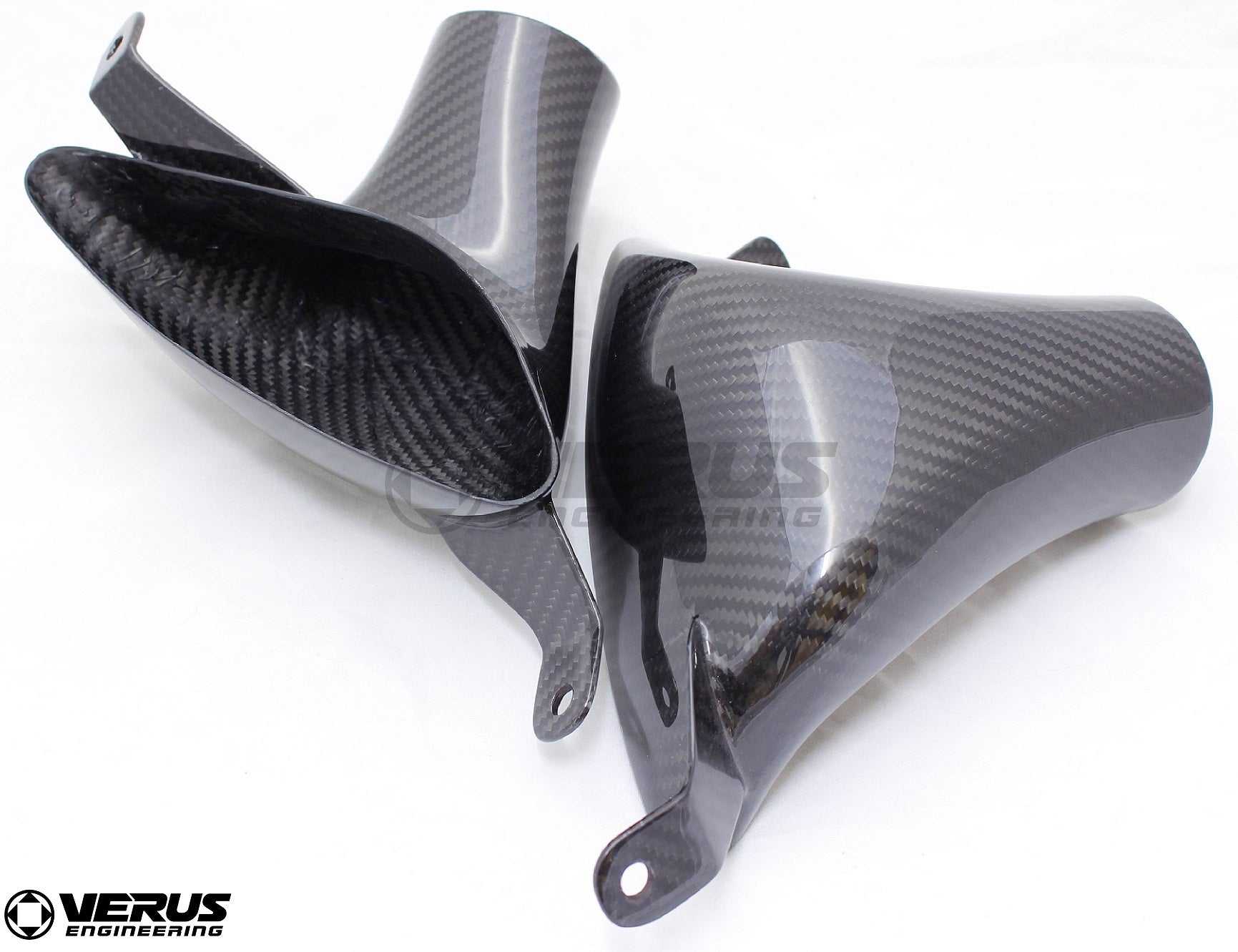

Carbon Fog-Light Duct, Right-Hand
-
Carbon Fog-Light Duct, Left-Hand
-
2.5" High-Temp Silicone Hose, Cut to Size (2)
-
Stainless Hose Clamp (2)
-
Zip-Tie (8)
Features

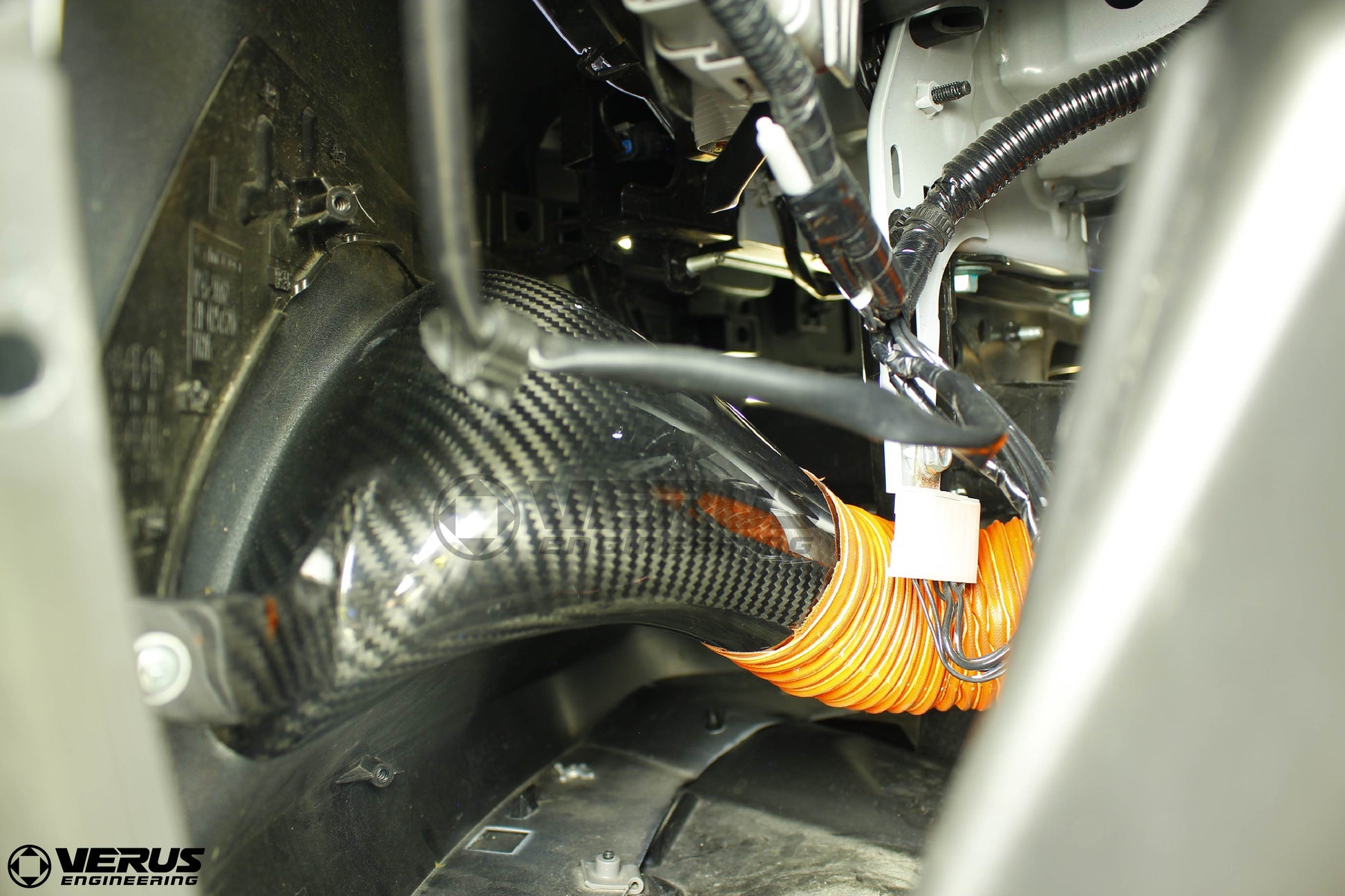

Carbon Fog-Light Ducts

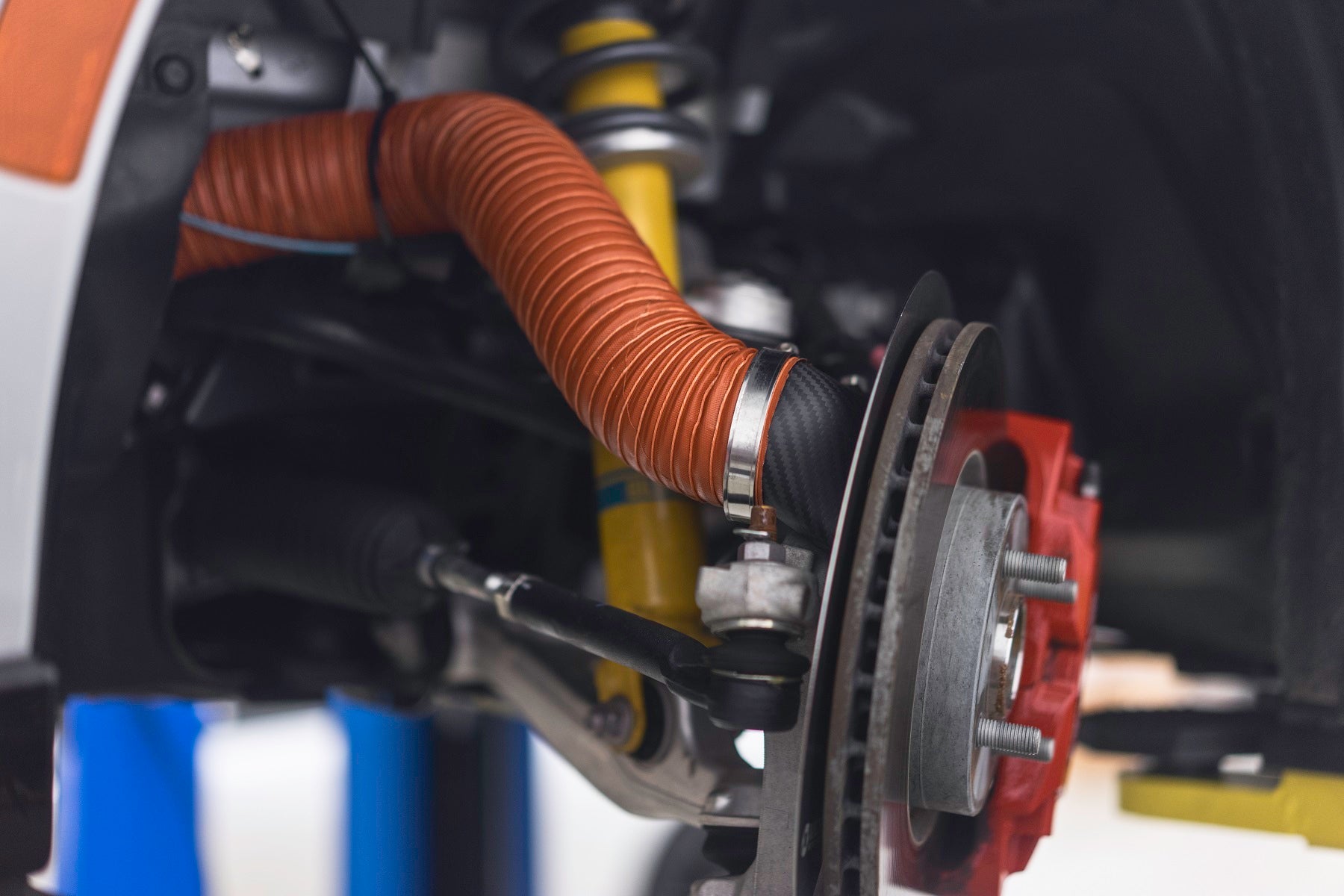

Direct Air into the Center of the Rotor

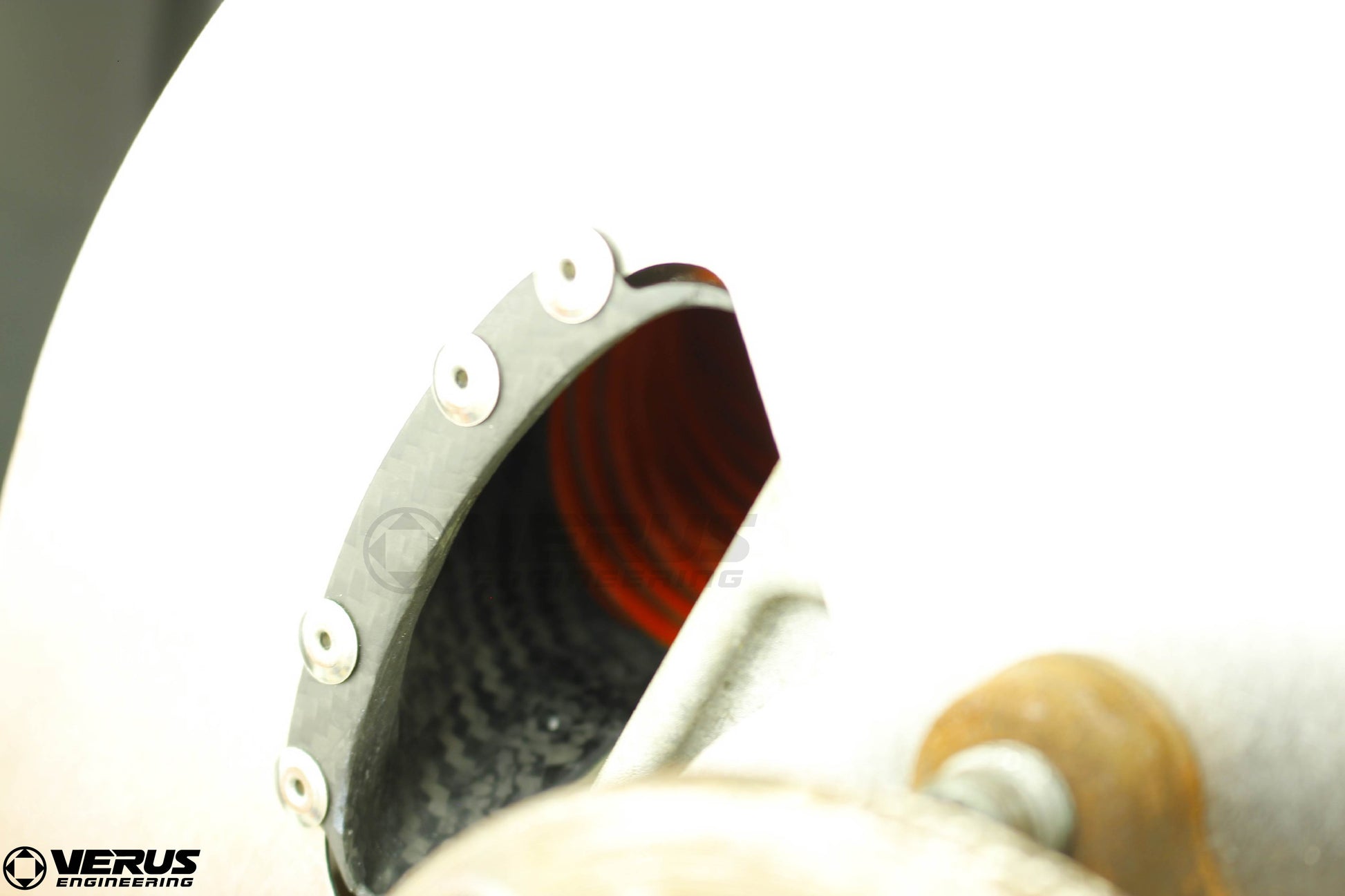

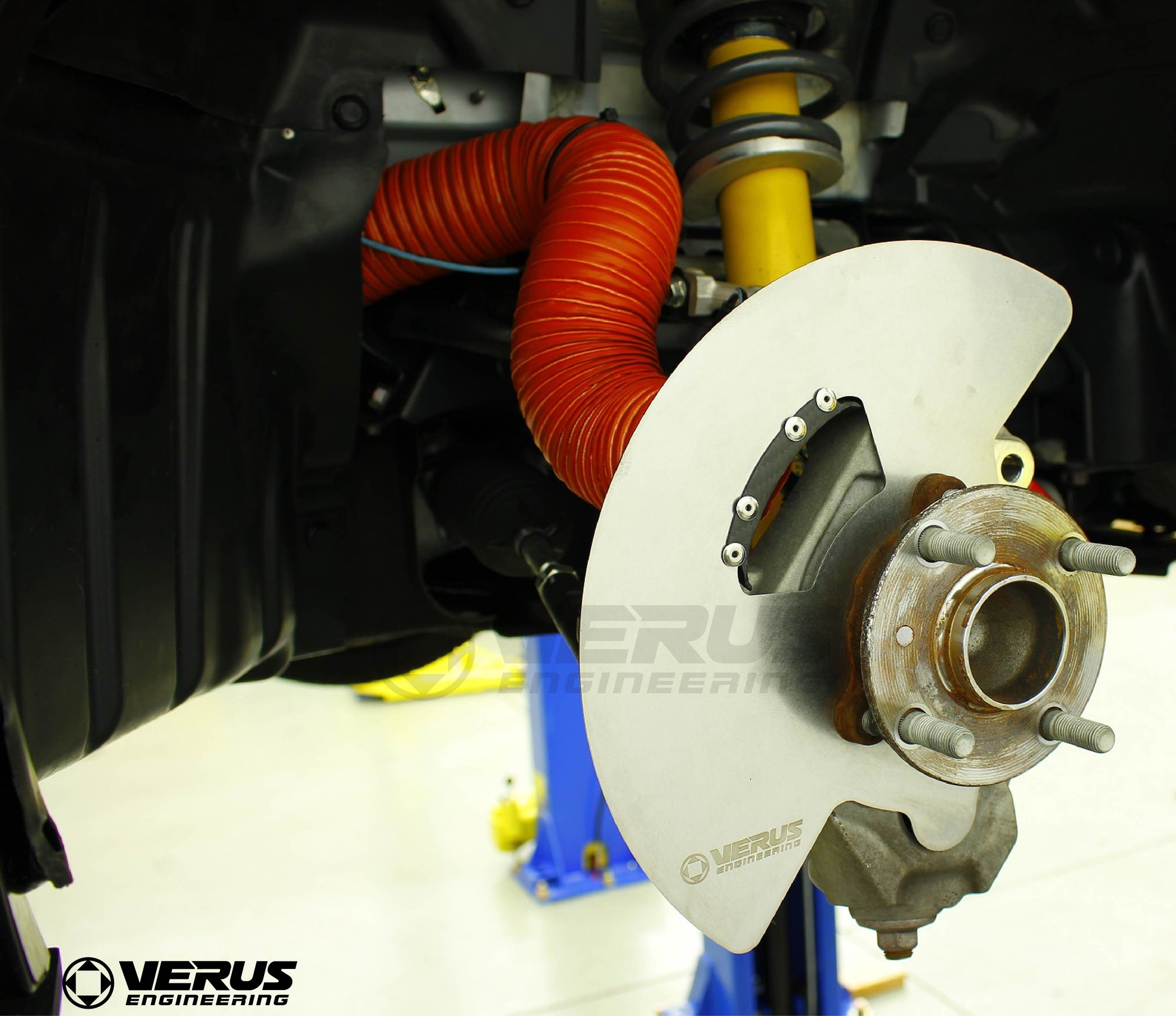

Stainless Backing Plate Adds Even More Airflow into Center of the Rotor
OEM Type Install
Installs in a Few Hours With Minimal Hand Tools and Know-How
Short Routing to Maximum Cooling Efficiency
Specifications
Stainless Backing Plate
100% Carbon Fiber, 2x2 Twill, Autoclave Cured Carbon Fiber Ducts
Pre-cut High-Temp Silicone Brake Duct Hose
All Necessary Hardware Included
Made in the U.S.A.
Science
Via tuft testing and thermal image testing, it’s quite clear that the brake cooling kit is highly effective even when used with the OEM rotors which have quite small vanes when compared to those of big brake kits. Smaller vanes will hurt flow and cooling due to the reduced size. With the brake cooling kit, the rotors remained much cooler directly after applying the brakes as well as after a short drive without using the brakes. It is also apparent that at high rates of speed, the brake cooling kit does significantly more than at lower speeds. This makes a lot of sense as the kit works by using frontal ambient air and funneling it into the center of the rotor. At higher speeds, pressure and flow rates are greater than at low speeds. We have heard reports back from customers tracking their cars having reduced brake fade, reduced rotor cracking, improved pad wear, and reduced brake fluid boiling. This is a great kit to help keep brake components at an appropriate temperature during competition and/or track days.
