WHITELINE Performance Sway Bar & Drop Link Package for the Mazda MX-5 (ND1 & ND2)

Engineered to 'Activate More Grip', BMK013 is a packaged solution designed to improve performance and enhance the driving experience of you ND Series Roadster.

Boasting a 26mm 3 point adjustable front sway bar and 16mm 2 point adjustable rear sway bar, the kit is completed with front and rear sway bar links and mounting accessories (where applicable) that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.

FEATURES

The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.

Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.

Internal grease reservoirs provide continual self-lubrication for optimum friction management.

Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Protective E-Coat coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Featuring premium anodized alloy materials, providing a long-lasting protective barrier to corrosion and wear but they look great too.

Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.

Sway bars are principally designed to reduce body roll or sway while cornering.

Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.

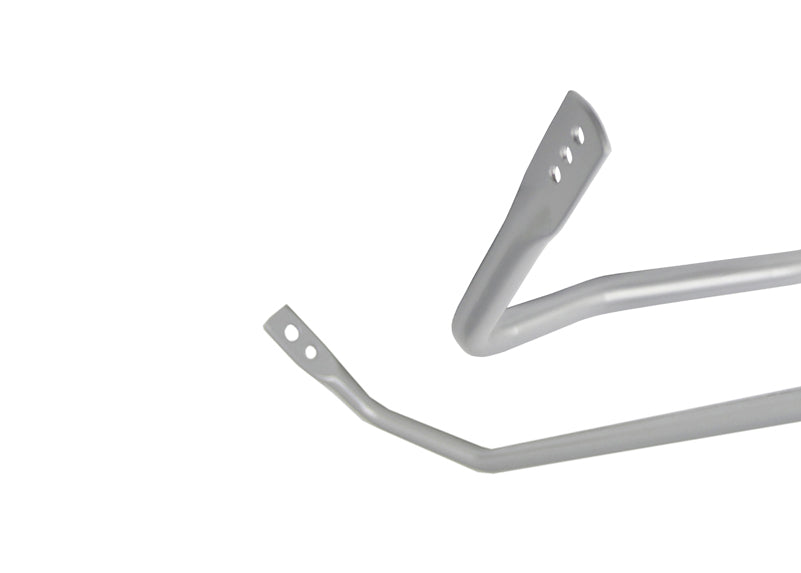

Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.

Sway bar mounts utilise the latest in material formulation technology combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.

DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.

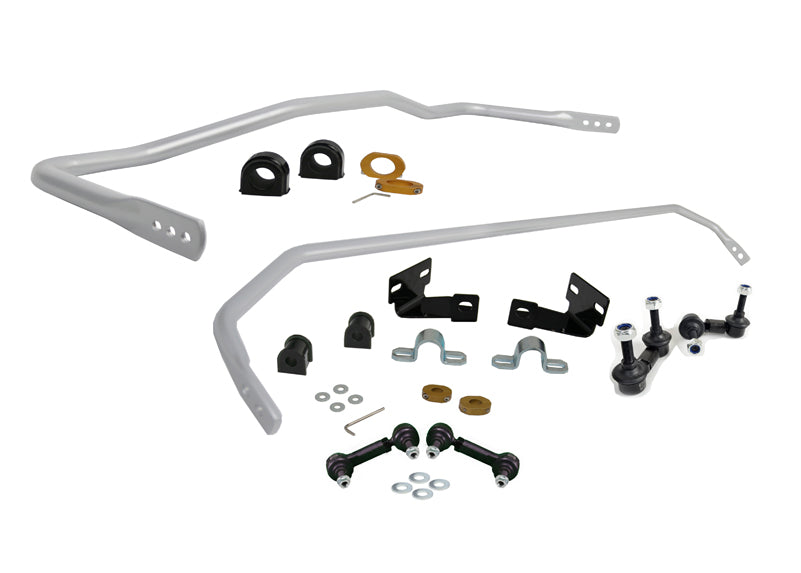

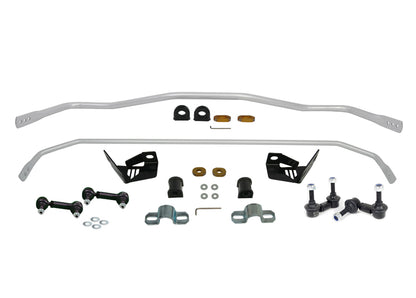

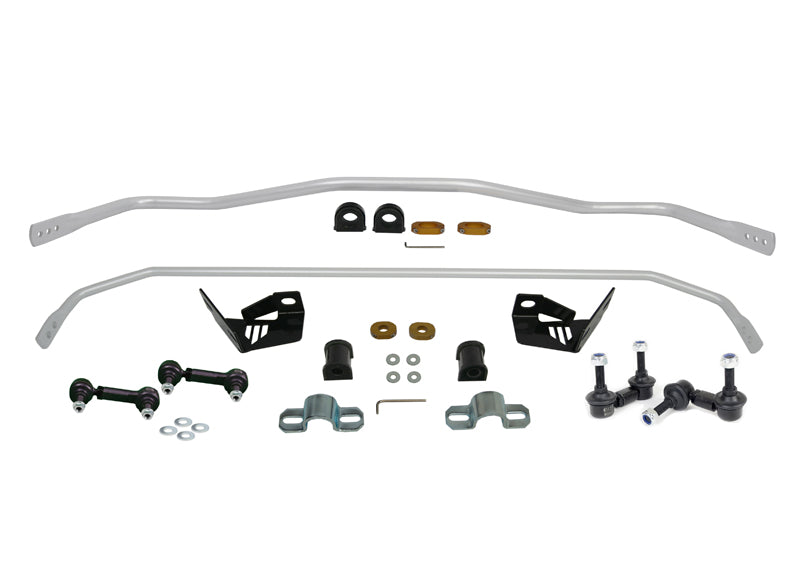

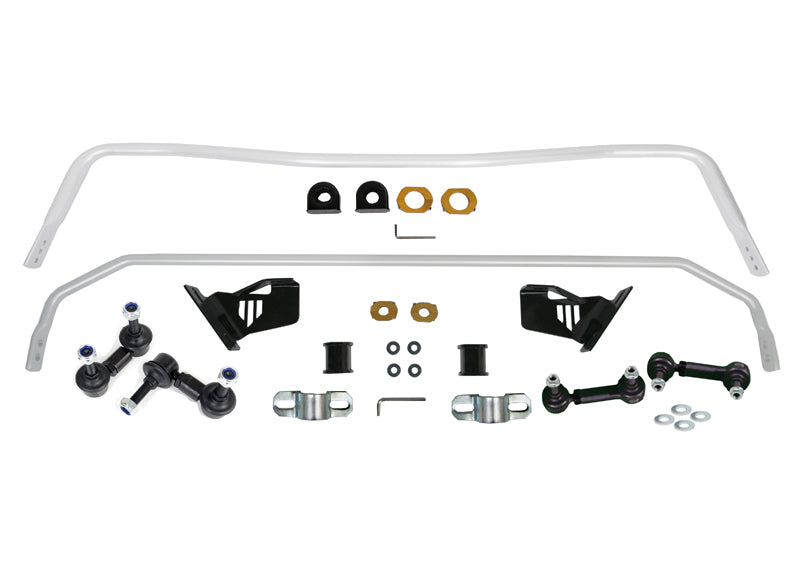

CONTENTS

BMF65Z, BMR94Z, KLC205 and KLC139 - essential to 'Activate more grip'

• Front Sway bar - 26mm 3 point adjustable
• Rear Sway bar - 16mm 2 point adjustable
• Front Sway bar - link kit
• Rear Sway bar - link kit

Upgrading the sway bars on your vehicle will;

• Minimising excess body roll
• Dramatically improving handling performance
• Tyre life
• Steering response
• Braking stability and response
• No compromise to ride quality, NVH or comfort of the vehicle

We recommend fitting this kit as a complete handling upgrade.

KIT SPECIFICATIONS

Diam(mm)	Diam(in)	Diam(in) decimal	Material	Adjustment	Incl Front Links	Incl Rear Links	Chart	Notes
Frt=26 Rr=16	Frt=1 1/32" Rr=5/8"	Frt=1.023 Rr=0.629"	Solid Spring Steel	Frt=3 point adjustable & Rr=2 point adjustable	Yes	Yes	BL-281	Sway bar vehicle kit includes front & rear sway bars and links



WARRANTY

3 Year / 60,000Kms
